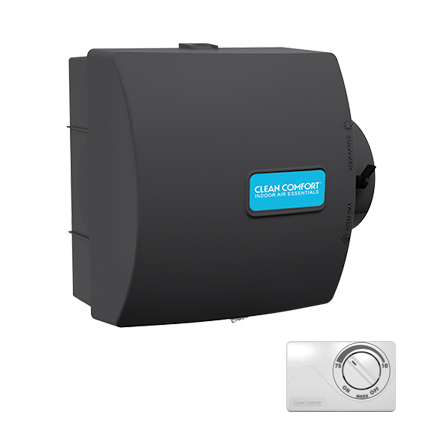

The HE17 evaporative humidifiers provide whole-home humidification and use the warm air from the furnace to evaporate water that is trickled over an internal humidifier pad. Comes with manual humidistat model HEP-MHX3C.
Specifications
Type: Evaporative Flow Through
Capacity: 17 Gallons Per Day
Warranty: 10 Years Parts
Dimensions: W12" x H16 1/2" x D10"
Home Size: Up To 2,800 Sq. Ft.
Installation: Warm Air / Return Air Plenum / Right or Left Side
Plenum Opening: W8⅞" x H12"
Bypass Opening: 6"
Cabinet Construction: DuraPlast® Ultra-Violet Stable Automotive Grade Plastic
Voltage: 24VAC
