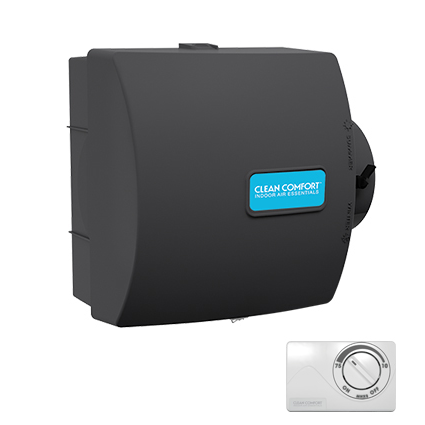

The HE17 evaporative humidifiers provide whole-home humidification and use the warm air from the furnace to evaporate water that is trickled over an internal humidifier pad.  Comes with automatic humidistat model HEP-GFX3.

Specifications
Type:  Evaporative Flow Through
Capacity:  17 Gallons Per Day
Warranty:  10 Years Parts
Dimensions:  W12" x H16 1/2" x D10"
Home Size:  Up To 2,800 Sq. Ft.
Installation:  Warm Air / Return Air Plenum / Right or Left Side
Plenum Opening:  W8⅞" x H12"
Bypass Opening:  6"
Cabinet Construction:  DuraPlast® Ultra-Violet Stable Automotive Grade Plastic
Voltage:  24VAC

Specification Sheets
