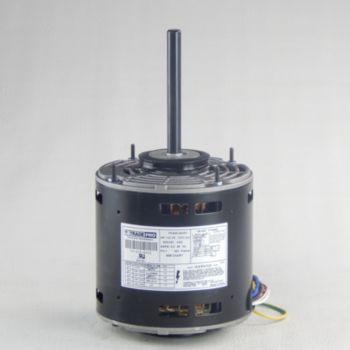

Universal Evaporator (Blower) Fan Motor: 1/6 – 1/2 Horsepower, 1075 RPM, 208-230 Volts

$232.97

-

• Part No. TP-E50-MHP2

Compare
SKU: TP-E50-MHP2, TP-CAP-10/440 Categories: , Tags: ,

Universal multi horse power fractional evaporator motor. 208-230V single phase, 3.6 amp draw. Speeds-800, 950, 1075. Side shell mount, pre-drilled to accept Rheem mount wings, resilient mount rings. 48 frame, 5" keyed shaft, 1/2" diameter, Dynamic Self Aligning bearing, reversible direction. 10MFD capacitor included.

Features & Specifications

  • Brand:  TRADEPRO
  • Bearing Type:  Self Aligning (SAB)
  • Capacitor MFD µF:  10
  • Cycle/Hertz:  60 Hz
  • Enclosure:  Open Air Over (OPAO)
  • Full Load Amps:  3.6
  • Insulation Class:  Class B
  • Lead Length:  36"
  • Motor HP:  1/6 HP - 1/2 HP
  • Motor Type:  PSC (Permanent Split Capacitor)
  • Number of Speeds:  4 (Four)
  • Phase:  Single
  • Rotation:  Counter-Clockwise
  • RPM:  1075
  • Shaft Diameter:  1/2"
  • Shaft Length:  5"
  • Voltage:  208-230 VAC

Additional information

Model Number

TP-E50-MHP2 (motor), TP-CAP-10/440 (capacitor)

Subtitle

Blower Fan Motor
