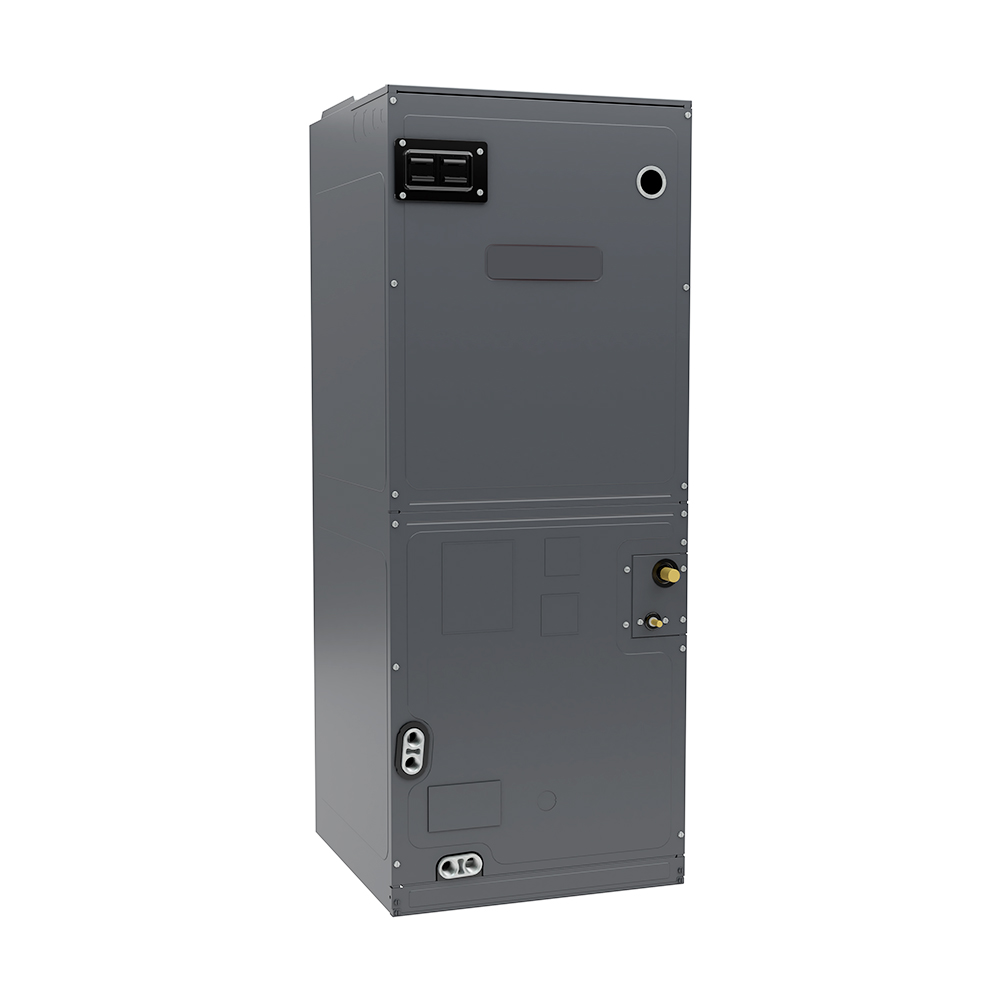

4 Ton Goodman Multi-Positional Air Handler with Variable Speed ECM Motor and Internal TXV

Product Specifications

-Internal factory-installed thermal expansion valves for cooling and heat pump applications
-Variable-speed ECM blower motor
-Integrated communicating ComfortBridgeTM Technology
-Commissioning and diagnostics via on board Bluetooth with the CoolCloudTM phone and tablet applicationAuto configuration of the airflow and tonnage in communicating mode
-Provides adjustable low CFM for efficient fan-only operation
-Improved humidity and comfort control
-Built-in compatibility with multi-stage heat pump and cooling applications
-All-aluminum evaporator coil
-AHRI certified; ETL listed
-Rigid SmartFrameTM cabinet
-Cabinet air leakage less than 2.0%at1.0inch H2O when tested in accordance with ASHRAE standard 193
-Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
-Horizontal or vertical configuration capabilities
-21" depth for easier attic access
-Foil-faced insulation covers the internal casing to reduce cabinet condensation
-Galvanized, leather grain-embossed finish
-Air Handler Dimensions:  H58" x W21 1/8" x D21"
