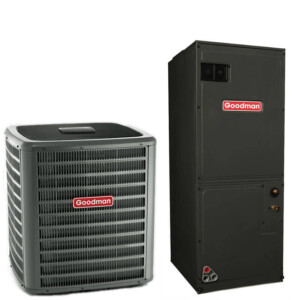

4 Ton Goodman 14 SEER2 R410A Single Stage Air Conditioner Split System



Condenser Model #  GSXN404810
Air Handler Model #  AMST48CU1400


This is not a Heat Pump System

• 10 year warranty on parts & compressor (registration required)
• Quiet multi-speed ECM indoor blower motor
• Energy efficient single stage scroll compressor
• All aluminum evaporator coil
• Quiet single speed PSC condenser fan motor
• Factory installed thermal expansion valve on indoor coil
• Copper tube condensing coil with aluminum fins
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Fully insulated air handler cabinet
• Designed for vertical upflow, downflow & horizontal installations
• Air handler includes a tool-less filter access for standard size filters
• Factory installed filter drier
• Condenser pre-charged with R410A refrigerant

Product Specifications
Condenser Dimensions:  H39 1/2
" x W35 1/2" x D35 1/2"
Air Handler Dimensions:  H58" x W21 1/8" x D21"

Volts:  208/240
Phase:  1
Hertz: 60
EER2:  11.7
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  7/8" outside diameter

Condenser Specification Sheets
Air Handler Specification Sheets

Additional information

Indoor Unit Air Flow

, ,


Energy Star Certified


Model Number

GSXN404810, AMST48CU1400


Cooling Efficiency


Electric Straight Cool Air Conditioning (AC) and Heating System, GSXN4 & AMST Series

Cooling Capacity
