• 10 year warranty on parts & compressor (registration required)
• Lifetime warranty on heat exchanger (registration required)
• System designed for horizontal installations only
• Quiet & efficient multi-speed ECM indoor blower motor
• High efficiency single stage scroll compressor
• Quiet single speed PSC condenser fan motor
• Energy saving single stage gas valve
• Copper tube condensing coil with aluminum fins
• Quiet single speed induced draft blower
• Indoor coil features a factory installed internal thermal expansion valve
• Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Fully insulated furnace and coil cabinet with all aluminum evaporator coil
• Complies with California 40 ng/J Low NOx emissions standard
• Factory installed filter drier in condenser
• Convertible from natural gas to propane (LP) gas with kit
• Condenser pre-charged with R-410A refrigerant
Condenser Dimensions: H39 1/2" x W35 1/2" x D35 1/2"
Furnace Dimensions: H34 1/2" x W21" x D28 3/4"

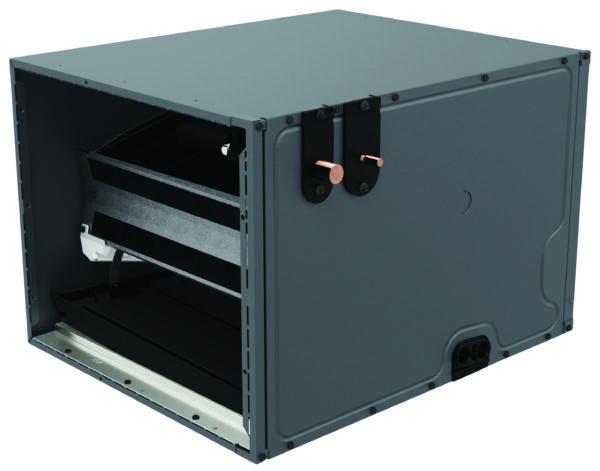

Cased Coil Dimensions: H24 1/2" x W26" x D21 1/8"
Volts (condenser): 208/240
Volts (furnace): 115
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 7/8" outside diameter
Condenser Specification Sheets
Gas Furnace Specification Sheets
Cased Coil Specification Sheets
|Indoor Unit Air Flow|
|Energy Star Certified||
GSXN404810, GM9S961005CN, CHPT4860D4

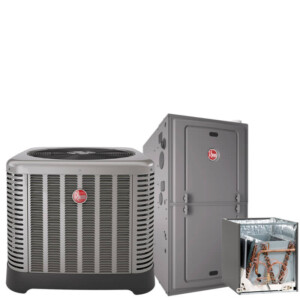

Natural or LP (Propane) Gas Heat & Air Conditioning (AC) System, GSXN4, GM9S96 & CHPT Series
