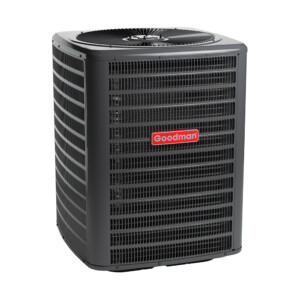

4 Ton Goodman 14.3 SEER2 R410A Single Stage Variable Speed Heat Pump Split System

Features
• 10 year warranty on parts & compressor (registration required)
• Designed for vertical upflow, downflow & horizontal installations
• Quiet & efficient variable speed ECM indoor blower motor
• High-efficiency single stage scroll compressor
• Quiet single speed PSC condenser fan motor
• Factory installed thermal expansion valve on indoor coil
• SmartShift® technology to ensure quiet reliable defrost
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Improved humidity and comfort control
• Copper tube condensing coil with aluminum fins
• Fully insulated air handler cabinet with all aluminum evaporator coil
• Outdoor unit has a high-capacity muffler to help reduce sound levels
• Factory installed bi-flow liquid-line filter drier
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Condenser includes suction-line accumulator, compressor crankcase heater, high/low pressure switches
• Air handler includes a tool-less filter access for standard size filters
• Condenser pre-charged with R410A refrigerant

Product Specifications
Condenser Dimensions:  H36 7/16" x W35 1/2" x D35 1/2"
Air Handler Dimensions:  H58" x W21 1/8" x D21"
Volts:  208/240
Phase:  1
Hertz: 60
EER2:  12.0
HSPF2:  7.5
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  7/8" outside diameter
