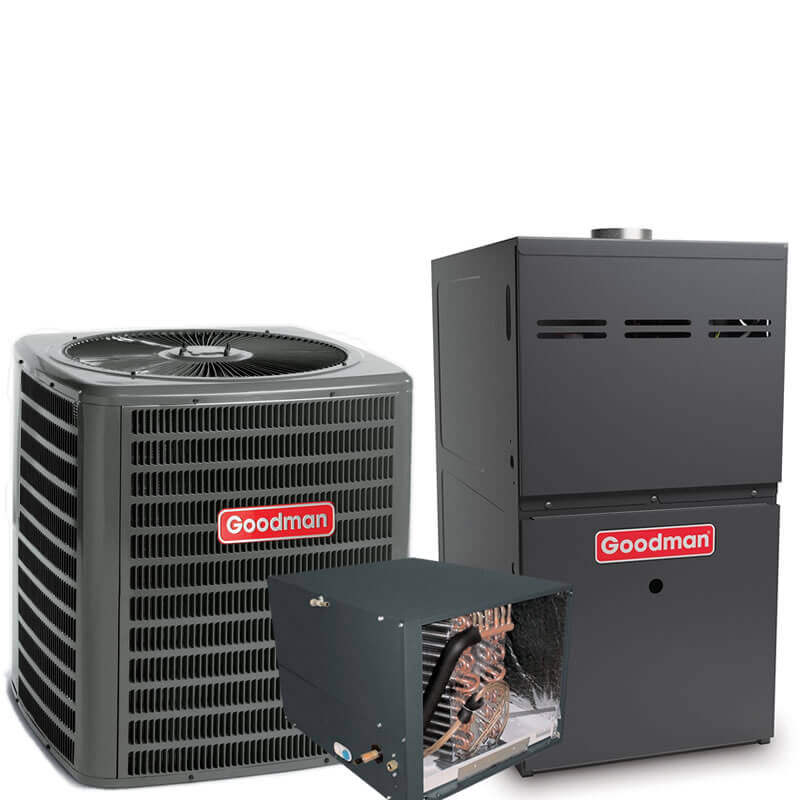

3 Ton Goodman 17.2 SEER2 R410A 80% AFUE 100,000 BTU Two-Stage Variable Speed Horizontal Gas Furnace Split System (ComfortBridge™ Technology)

$5,372.65$5,763.65

-

Condenser Model # GSXC703610
Furnace Model # GMVC801005CN
Cased Coil Model # CHPT4860D4

Compare

Features
• 10 year warranty on parts (registration required)
• Lifetime warranty on compressor & heat exchanger (registration required)
• System designed for horizontal installations only
• Quiet & efficient variable speed ECM indoor blower motor
• High efficiency two-stage Copeland Ultra-Tech compressor
• Quiet two-speed ECM condenser fan motor
• High-density foam compressor sound blanket
• Quiet two speed induced draft blower
• Energy saving two-stage gas valve
• Integrated Communicating ComfortBridge Technology
• Indoor coil features a factory installed internal thermal expansion valve
• Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
• Condenser includes factory installed filter drier, transformer, high/low pressure switches
• Fully insulated furnace & coil cabinet
• All aluminum evaporator coil
• Copper tube condensing coil with aluminum fins
• Ambient temperature sensors provided in outdoor unit
• Convertible from natural gas to propane (LP) gas with kit
• Condenser pre-charged with R-410A refrigerant

Specifications
Condenser Dimensions:  H39 1/2" x D35 1/2" x W35 1/2"
Furnace Dimensions:  H33 3/8" x W21" x D28"
Cased Coil Dimensions:  H24 1/2" x W26" x D21 1/8"
Volts (condenser):  208/240
Volts (furnace):  115
Phase:  1
Hertz: 60
EER2:  12.5
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  3/4" outside diameter

Condenser Specification Sheets
Furnace Specification Sheets
Cased Coil Specification Sheets

Additional information

Heating Efficiency

Indoor Unit Air Flow

Brand

Heating Capacity

Energy Star Certified

Yes

Model Number

GSXC703610, GMVC801005CN, CHPT4860D4

Refrigerant

Cooling Efficiency

Subtitle

Natural or LP (Propane) Gas Heat & Air Conditioning (AC) System, GSXC7, GMVC8 & CHPT Series, Energy Star

Cooling Capacity
