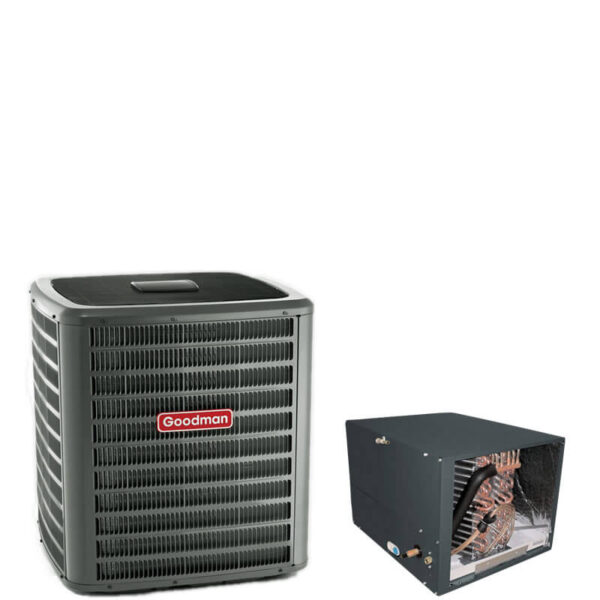

3 Ton Goodman 15.2 SEER2 R410A Single Stage Air Conditioner Condenser with 17.5″ Tall Horizontal Cased Evaporator Coil
This is not a Heat Pump System
Features
• Energy Star Certified
• 10 year warranty on parts & compressor (registration required)
• Indoor coil designed for horizontal installations only
• High efficiency single stage scroll compressor
• Quiet single speed PSC condenser fan motor
• Copper tube condensing coil with aluminum fins
• Indoor coil features an internal thermal expansion valve
• Fully insulated coil cabinet with all aluminum evaporator coil
• Heavy-gauge galvanized-steel condenser cabinet with louvered sound control top
• Coil features rust resistant thermoplastic drain pan
• Factory installed filter drier in condenser
• Condenser pre-charged with R-410A refrigerant
Product Specifications
Condenser Dimensions: H39 1/2" x W35 1/2" x D35 1/2"
Cased Coil Dimensions: H17 1/2" x W30" x D21"
Volts: 208/240
Phase: 1
Hertz: 60
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 7/8" outside diameter
Condenser Specification Sheets
Cased Coil Specification Sheets
*Entire system SEER2 rating may vary depending on how the equipment works together as a whole
Additional information
Indoor Unit Air Flow | |
---|---|
Brand | |
Energy Star Certified | Yes |
Model Number | GSXH503610, CHPTA3630B4 |
Refrigerant | |
Cooling Efficiency | |
Subtitle | Add on Air Conditioning (AC) for Gas Furnace, Condenser with A Coil, GSXH5 & CHPT Series |
Cooling Capacity |
