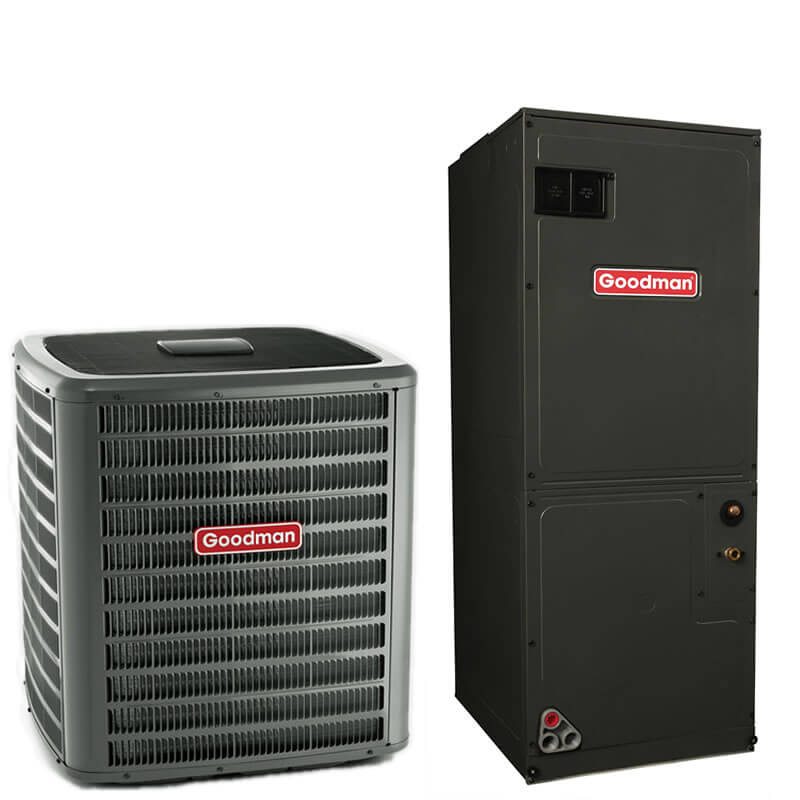

2 Ton Goodman 15 SEER R410A Variable Speed Heat Pump Split System

$2,948.40$3,377.40

-

• Condenser Model #  GSZ140241

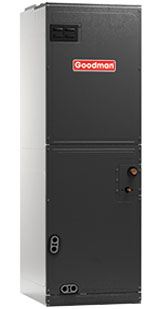

• Air Handler Model #  AVPTC25B14

Compare
SKU: GSZ140241, AVPTC25B14 Categories: , Tags: , , ,

Features
• Condenser is Energy Star Certified
• 10 year warranty on parts & compressor

• High efficiency single stage scroll compressor
• Quiet and efficient variable speed ECM indoor blower motor
• All aluminum evaporator coil
• High and low pressure switches
• Designed for upflow, downflow, horizontal left and horizontal right installations
• Factory installed compressor crankcase heater
• Condenser pre-charged with R-410A refrigerant
• Factory installed internal TXV
• Insulated air handler cabinet
• Factory installed high capacity muffler

• Aluminum tube condensing coil with aluminum fins
• Factory installed bi-flow liquid line filter drier
• Toolless filter access accommodates standard size filters
• Factory installed suction line accumulator

• Condenser applicable for ground-level or rooftop mount

Specifications
Condenser Dimensions:  H34 1/2
" x W29" x D29"
Air Handler Dimensions:  H45" x W17 1/2" x D21"

Volts:  208/240
Phase:  1
Hertz: 60
EER:  12.5
HSPF:  8.3
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  3/4" outside diameter

Condenser Specification Sheets
Air Handler Specification Sheets

Additional information

Indoor Unit Air Flow

, ,

Brand

Energy Star Certified

Yes

Model Number

GSZ140241, AVPTC25B14

Refrigerant

Cooling Efficiency

Subtitle

Electric Air Conditioning (AC) and Heating System, GSZ14 & AVPTC Series, Energy Star Certified

Cooling Capacity
