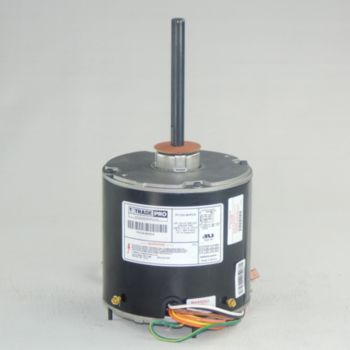

Universal Condenser Fan Motor: 1/5 – 1/3 Horsepower, 825 RPM, 208-230 Volts
Universal multi-horse power fractional condenser motor. 208-230V single phase, 2.4 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Dynamic Self Aligning bearing, reversible direction. Mounts in any position. 7.5MFD capacitor included.
Features & Specifications
- Brand: TRADEPRO
- Bearing Type: Self Aligning (SAB)
- Capacitor MFD µF: 7.5
- Cycle/Hertz: 60 Hz
- Enclosure: Totally Enclosed Air Over (TEAO)
- Full Load Amps: 2.4
- Insulation Class: Class B
- Lead Length: 36"
- Motor HP: 1/5 HP - 1/3HP
- Motor Type: PSC (Permanent Split Capacitor)
- Number of Speeds: 1 (Single)
- Phase: Single
- Rotation: Counter-Clockwise
- RPM: 825
- Shaft Diameter: 1/2"
- Shaft Length: 5"
- Voltage: 208-230 VAC
Additional information
| Model Number | TP-C33-MHP2-8 (motor), TP-CAP-7.5/440 (capacitor) |
|---|---|
| Subtitle | Compressor Fan Motor |
