$3,556.93
-
RHEEM

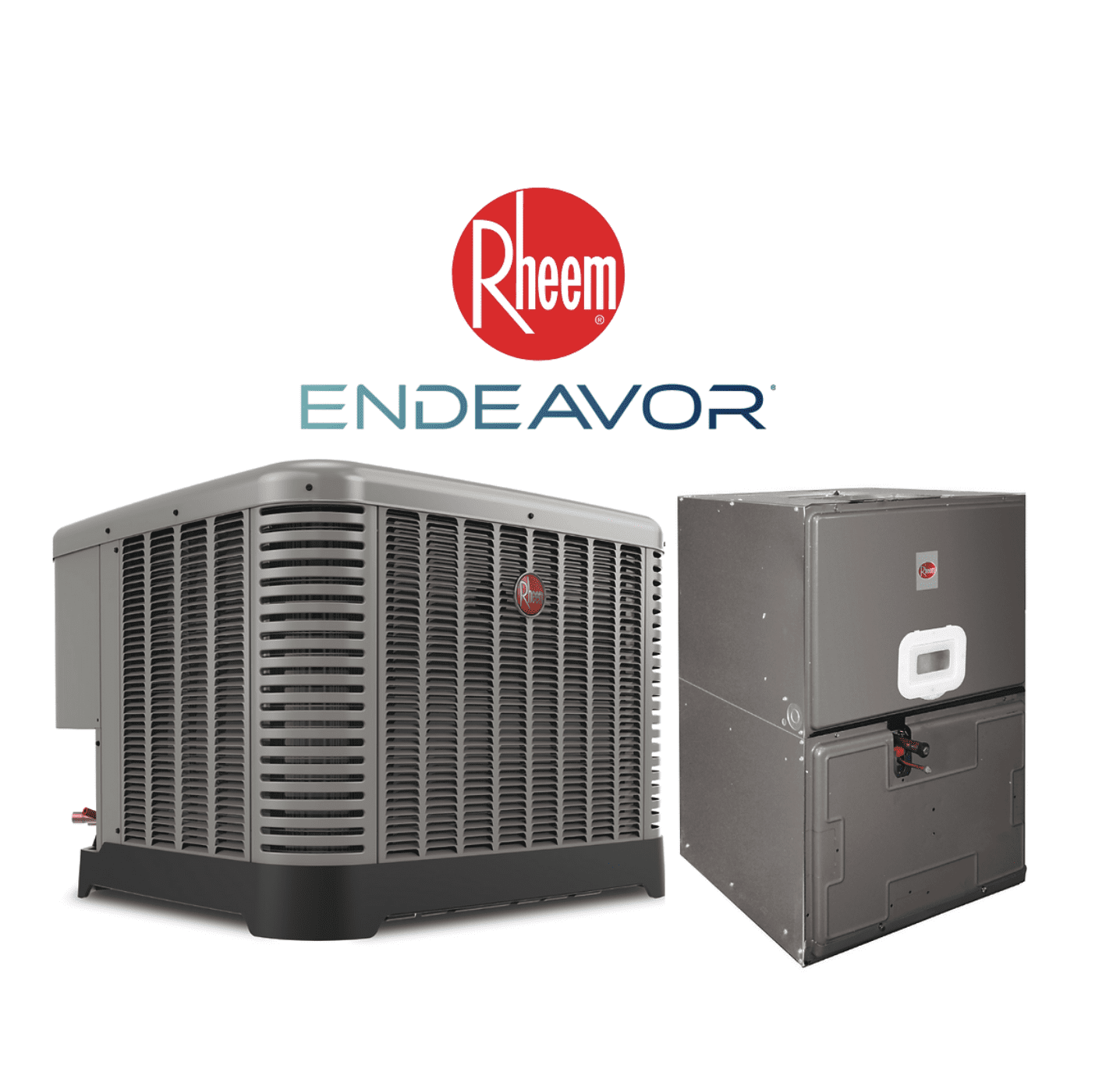

1.5 Ton Rheem 14.3 SEER2 R-454B Single Stage Air Conditioner Split System w/ 5kW (35″ Tall Air Handler)
RA14AY18AJ1NALHP RB2TY2417STANMJB05
10 year warranty on parts & compressor
RB2TY stands 35″ tall and convertible options include vertical up-flow, vertical down-flow, horizontal left hand or right hand
RB2TY features a Two-Stage Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units
Scroll Compressor Features greater efficiency
7mm Condenser Copper Coil requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
Fully insulated air handler cabinet with all aluminum evaporator coil
Condenser includes filter drier, internal thermal overload & internal pressure relief valve
Factory installed thermal expansion valve on indoor coil
Coils tested at factory with extensive refrigerant leak check
Refrigerant Detection System featuring the A2L sensor and mitigation board offers system protection
Outdoor unit pre-charged with R454B refrigerant
1.5 Ton Rheem 14.3 SEER2 R-454B Single Stage Air Conditioner Split System w/ 5kW (35" Tall Air Handler)
FEATURES
10 year warranty on parts & compressor
RB2TY stands 35" tall and convertible options include vertical up-flow, vertical down-flow, horizontal left hand or right hand
RB2TY features a Two-Stage Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units
Scroll Compressor Features greater efficiency
7mm Condenser Copper Coil requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
Fully insulated air handler cabinet with all aluminum evaporator coil
Condenser includes filter drier, internal thermal overload & internal pressure relief valve
Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
Factory installed thermal expansion valve on indoor coil
Coils tested at factory with extensive refrigerant leak check
Composite base pan dampens sound, captures louver panels, eliminates corrosion
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193
Refrigerant Detection System featuring the A2L sensor and mitigation board offers system protection by automatically pausing outdoor unit operation if excess refrigerant is detected
Outdoor unit pre-charged with R454B refrigerant
SPECIFICATIONS
Condenser Dimensions: H25" x W29 3/4" x D29 11/16"
Air Handler Dimensions: H35" x W17 1/2" x D22 1/2"
Volts: 208/230
Phase: 1
Hertz: 60
SEER2: 14.3
EER2: 11.7
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter
Condenser Specification Sheets
Air Handler Specification Sheets
Additional information
| Indoor Unit Air Flow | Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge) |
|---|---|
| Brand | |
| Refrigerant | |
| Cooling Efficiency | |
| Cooling Capacity |
