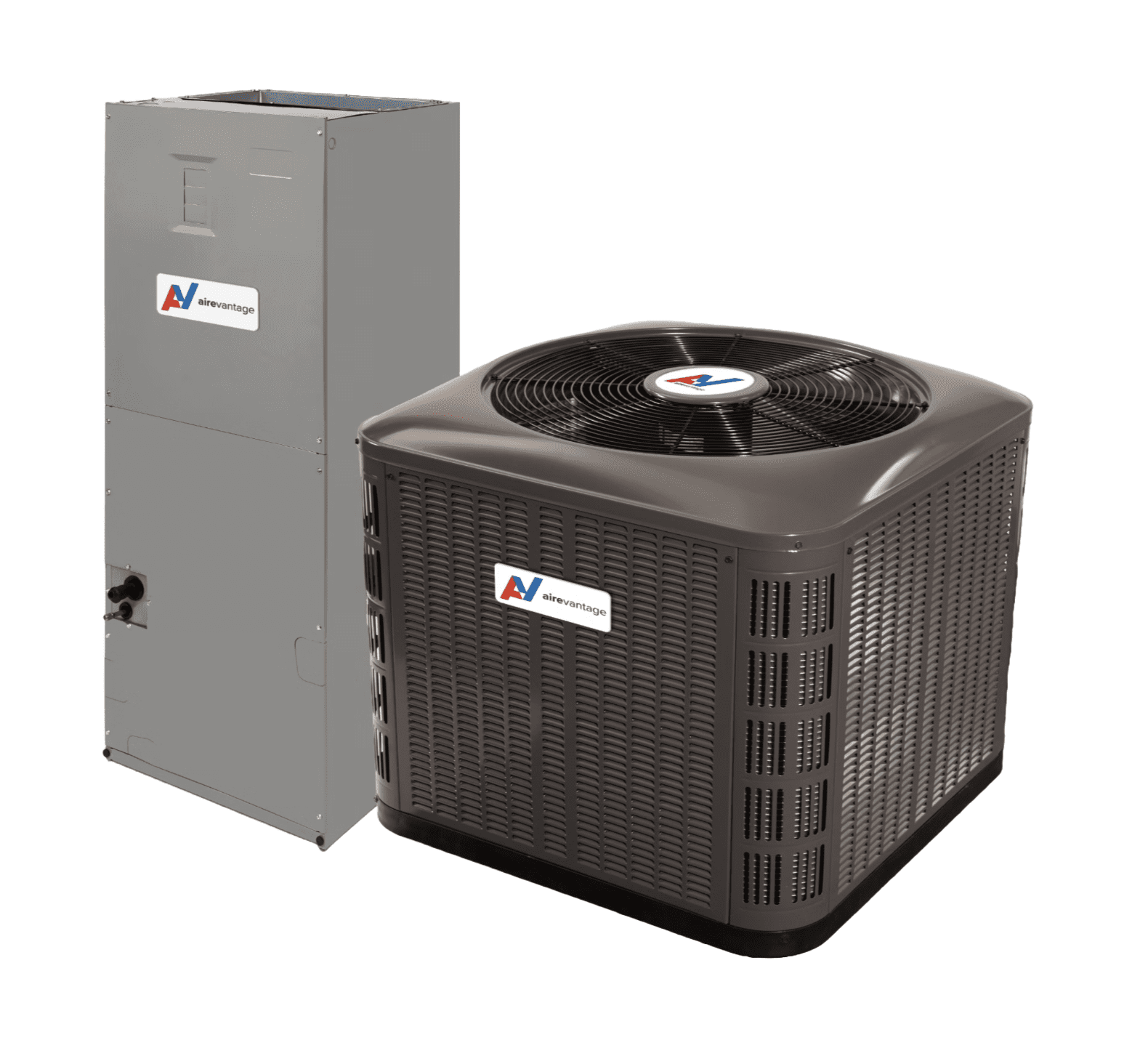

1.5 Ton Airevantage 14.3 SEER2 R-454B Single Stage Heat Pump Split System

AireVantage Heat Pump systems deliver high-quality performance at an affordable price with premium features that are designed to deliver exceptional efficiency.
This value line of HVAC products are the perfect choice for budget conscious homeowners.

FEATURES
10 year warranty on parts & compressor
Multi-Position installation for horizontal, up-flow, down-flow and vertical applications
State-of-the-art Copeland Scroll compressor
Permanently Lubricated Heavy duty PSC motor for long-lasting reliability and quiet operation
Multi speed blower gives flexibility of installation
All-aluminum coil to provide high corrosion resistance
Built-in filter rack
Made with galvanized steel and a polyester urethane finish meaning better corrosion resistance with a 950-hour salt spray rating
High-Pressure Switch protects against abnormally high system pressures
Auto reset feature prevents nuisance service visits
1” cabinet insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating
Liquid Line Filter Drier Included with unit
When the unit shuts down, a five-minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure
Refrigerant Detection System featuring the A2L sensor and mitigation board protects system by pausing outdoor unit operation if excess refrigerant is detected
Pre-charged with R-454B refrigerant

SPECIFICATIONS
Condenser Dimensions:  H34.75" x W35.5" x D35.5"
Air Handler Dimensions:  H43.3" x W14.18" x D22"
Volts:  208/230
Phase:  1
Hertz: 60
EER2: 11
HSPF2:  7.5
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  3/4" outside diameter

Condenser Specifications
Air Handler Specifications
