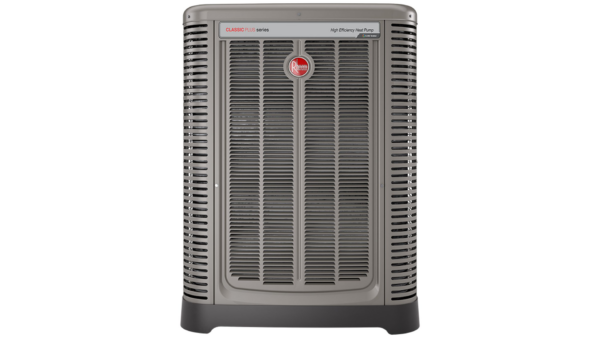

Protected: 4 Ton Rheem 16 SEER2 R410A Three-Stage Variable Speed Heat Pump Condenser

Call For Pricing & Availability

-

Condenser Model: RP16AZ48AJ3CA

Compare

The Rheem Endeavor RP16AZ operates with the easy-to-use EcoNet Smart Thermostat, which optimizes system performance and provides a new level of protection and precision comfort with features.

RP16AZ - Cooling Efficiency: 17.0 SEER2/10.4 EER2 - Heating Efficiency: 8.1 HSPF2
Nominal Sizes: 2 to 5 Ton [7.0 TO 17.6 kW],Cooling Capacities 22.8 to 55.0 kBTU

Features

•  10 Year Warranty on Parts & Compressor
•  EcoNet Enabled for automatic system configuration and optimization
•  PlusOne Diagnostics & Bluetooth Connectivity with Rheem Contractor & EcoNet Apps built-in technology for advanced setup, monitoring, troubleshooting, and repair
•  PlusOne Variable Speed Twin Rotary Compressor & Inverter Drive (Variable speed operation 40 to 70% capacity or 100% capacity via line voltage with EcoNet)

•  Brushless DC Condenser Motor enhances reliability and allows for easier
•  Swept Wing Fan Technology quieter operation and improved unit acoustics
•  Inverted Reversing Valve for faster heat transfer with gravity assist shifting & reduced joint stress•  Includes filter drier, internal thermal overload & internal pressure relief valve
•  7 mm Condenser Copper Coil less refrigerant allowing for smaller lighter footprint while enhancing reliability
•  Refrigerant Leak Check coils tested at factory with extensive refrigerant leak check
•  Composite base pan dampens sound, captures louver panels, eliminates corrosion

•  Pre-charged with R410A refrigerant

Specifications

Dimensions:  H35" x W33 3/4" x D33 3/4"
Volts:  208/230
Phase:  Single
Hertz:  60
Sound Rating:  74.3 decibels high stage, 61.5 decibels low stage
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  7/8" outside diameter

Specification Sheets

Additional information

Brand

Energy Star Certified

No

Refrigerant

Cooling Efficiency

Cooling Capacity
