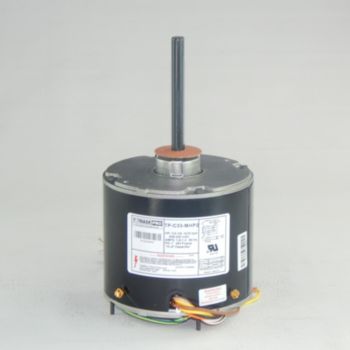

Universal Condenser Fan Motor: 1/6 – 1/3 Horsepower, 1075 RPM, 208 – 230 Volts

$219.22

-

• Part No. TP-C33-MHP2

Compare
SKU: TP-C33-MHP2, TP-CAP-10/440 Categories: , Tags: ,

Universal multi-horse power fractional condenser motor. 208-230V single phase, 1.8 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Dynamic Self Aligning bearing, reversible direction. Mounts in any position. 10MFD capacitor included.

Features & Specifications

  • Brand:  TRADEPRO
  • Bearing Type:  Self Aligning (SAB)
  • Capacitor MFD µF:  10
  • Cycle/Hertz:  60 Hz
  • Enclosure:  Totally Enclosed Air Over (TEAO)
  • Full Load Amps:  1.8
  • Insulation Class:  Class B
  • Lead Length:  36"
  • Motor HP:  1/6 HP - 1/3HP
  • Motor Type:  PSC (Permanent Split Capacitor)
  • Number of Speeds:  1 (Single)
  • Phase:  Single
  • Rotation:  Reversible
  • RPM:  1075
  • Shaft Diameter:  1/2"
  • Shaft Length:  5"
  • Voltage:  208-230 VAC

Additional information

Model Number

TP-C33-MHP2 (motor), TP-CAP-10/440 (capacitor)

Subtitle

Compressor Fan Motor
