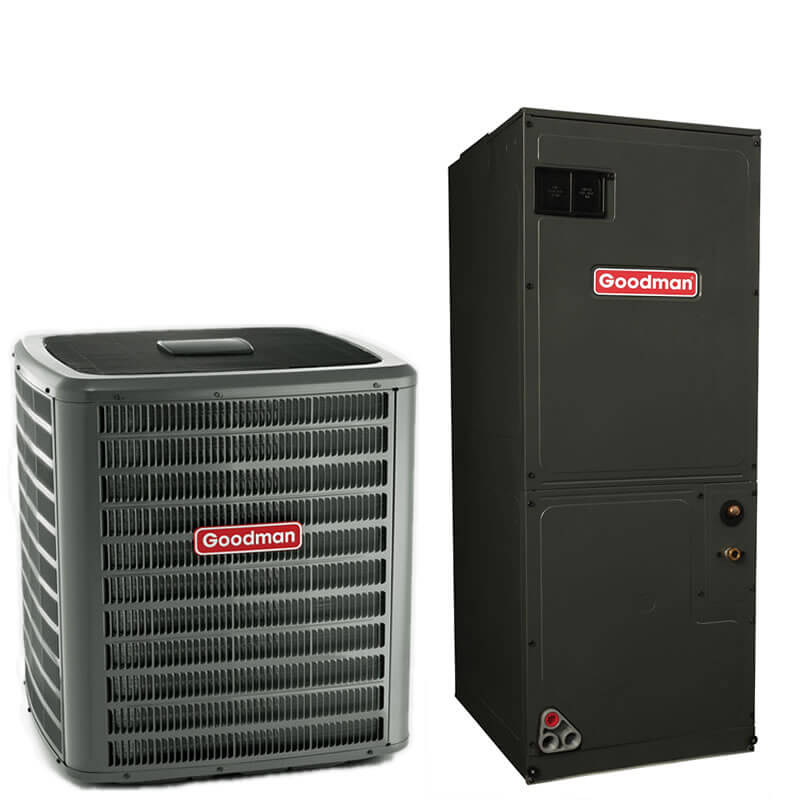

3 Ton Goodman 17.2 SEER2 R410A Two-Stage Variable Speed Heat Pump Split System (ComfortBridge™ Technology)



Condenser Model # GSZC703610

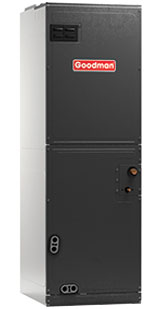

Air Handler Model # AMVT42CP1400


• Energy Star Certified
• 10 year warranty on parts (registration required)
•  Lifetime warranty on compressor (registration required)
• Designed for vertical upflow, downflow & horizontal installations
• Quiet & efficient variable speed ECM indoor blower motor
• High efficiency two-stage Copeland Ultra-Tech compressor
• ComfortAlert™ built in diagnostics
• High-density foam compressor sound blanket
• Integrated Communicating ComfortBridge Technology
• Fully insulated air handler cabinet with all aluminum evaporator coil
• Quiet two-speed ECM condenser fan motor
• Indoor coil features an internal thermal expansion valve
• Copper tube/enhanced aluminum fin coil
• Heavy-gauge galvanized-steel condenser cabinet with a louvered sound control top
• Condenser includes bi-flow filter drier, high-capacity muffler, suction-line accumulator, compressor crankcase heater, high & low pressure switches
• Air handler includes a tool-less filter access for standard size filters
• Coil & ambient temperature sensors provided in outdoor unit
• Condenser pre-charged with R410A refrigerant

Product Specifications
Condenser Dimensions:  H35 3/4
" x W35 1/2" x D35 1/2"
Air Handler Dimensions:  H53 7/16" x W21 1/8" x D21"

Volts:  208/240
Phase:  1
Hertz: 60
EER2:  12.5
HSPF2:  8.1
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  7/8" outside diameter

Condenser Specification Sheets
Air Handler Specification Sheets

Additional information

Indoor Unit Air Flow

, ,


Energy Star Certified


Model Number

GSZC703610, AMVT42CP1400


Cooling Efficiency


Electric Heat Pump Air Conditioning (AC) and Heating System, GSZC7 & AMVT Series, Energy Star Certified, Communicating System

Cooling Capacity
