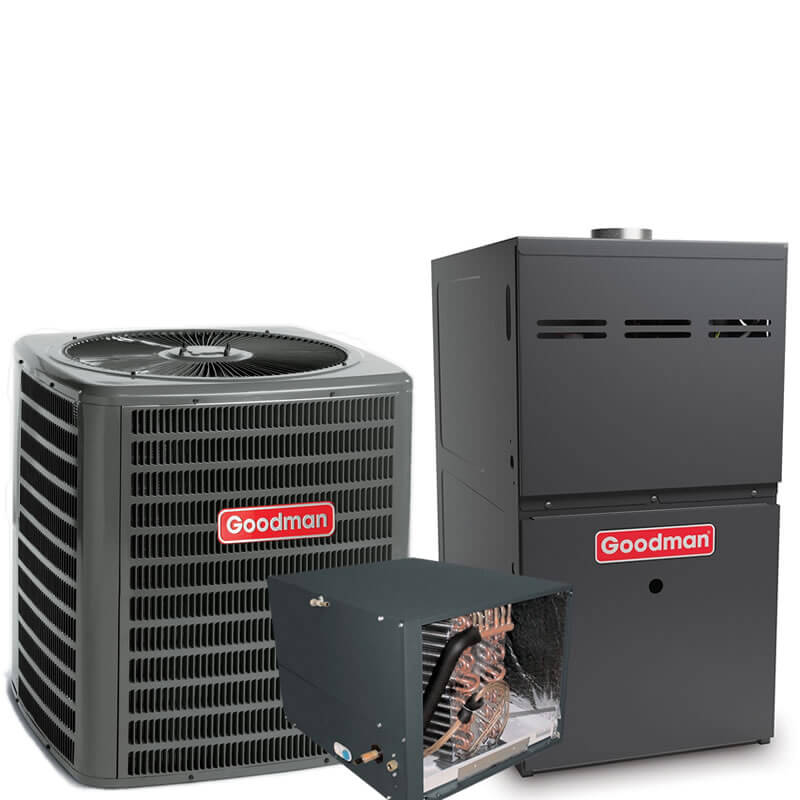

3 Ton Goodman 17.2 SEER2 R410A 80% AFUE 80,000 BTU Two-Stage Variable Speed Horizontal Gas Furnace Split System (ComfortBridge™ Technology)
Features
• 10 year warranty on parts (registration required)
• Lifetime warranty on compressor & heat exchanger (registration required)
• System designed for horizontal installations only
• Quiet & efficient variable speed ECM indoor blower motor
• High efficiency two-stage Copeland Ultra-Tech compressor
• Quiet two-speed ECM condenser fan motor
• High-density foam compressor sound blanket
• Quiet two speed induced draft blower
• Energy saving two-stage gas valve
• Integrated Communicating ComfortBridge Technology
• Indoor coil features a factory installed internal thermal expansion valve
• Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
• Condenser includes factory installed filter drier, transformer, high/low pressure switches
• Fully insulated furnace & coil cabinet
• All aluminum evaporator coil
• Copper tube condensing coil with aluminum fins
• Ambient temperature sensors provided in outdoor unit
• Convertible from natural gas to propane (LP) gas with kit
• Condenser pre-charged with R-410A refrigerant
Specifications
Condenser Dimensions: H39 1/2" x D35 1/2" x W35 1/2"
Furnace Dimensions: H33 3/8" x W21" x D28"
Cased Coil Dimensions: H24 1/2" x W26" x D21 1/8"
Volts (condenser): 208/240
Volts (furnace): 115
Phase: 1
Hertz: 60
EER2: 12.5
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter
Condenser Specification Sheets
Furnace Specification Sheets
Cased Coil Specification Sheets
Additional information
Heating Efficiency | |
---|---|
Indoor Unit Air Flow | |
Brand | |
Heating Capacity | |
Energy Star Certified | Yes |
Model Number | GSXC703610, GMVC800804CN, CHPT4860D4 |
Refrigerant | |
Cooling Efficiency | |
Subtitle | Natural or LP (Propane) Gas Heat & Air Conditioning (AC) System, GSXC7, GMVC8 & CHPT Series, Energy Star |
Cooling Capacity |
