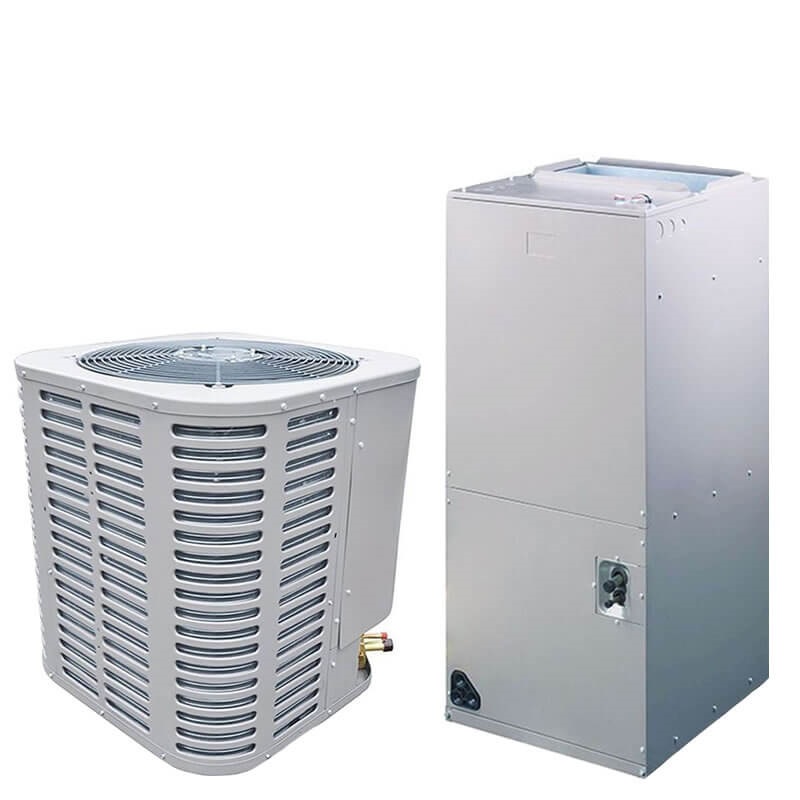

The Ameristar line of heating and cooling products is made by Ingersoll Rand which is part of the Trane and American Standard family.
Features
• 10 year warranty on parts and compressor
• Four way design for upflow, downflow, horizontal left and horizontal right installations
• Compact design and small footprint requires minimal yard space
• Scroll compressor uses fewer moving parts for higher efficiency & increased reliability
• All aluminum evaporator coil
• Designed for quiet operation--only 74 dB
• Multiple airflow designs convert easily to fit available space in the home.
• Insulated air handler blower compartment optimizes thermal and sound performance
• Condenser pre-charged with R410A refrigerant
Specifications

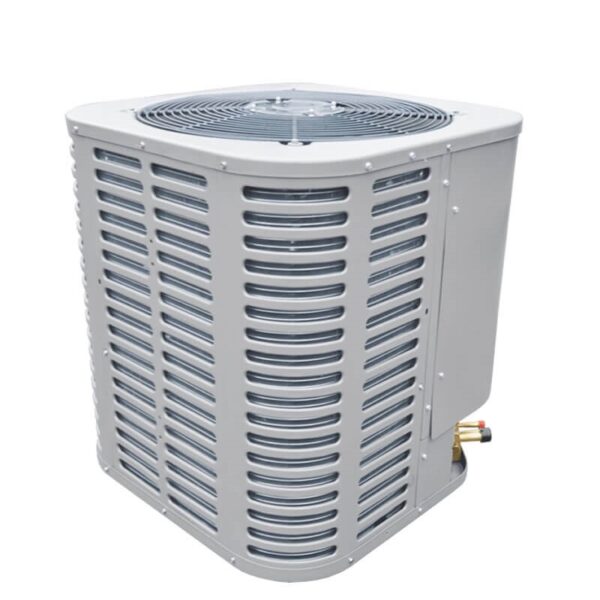

Condenser Dimensions: H24 15/16" x W23 5/8" x D23 5/8"

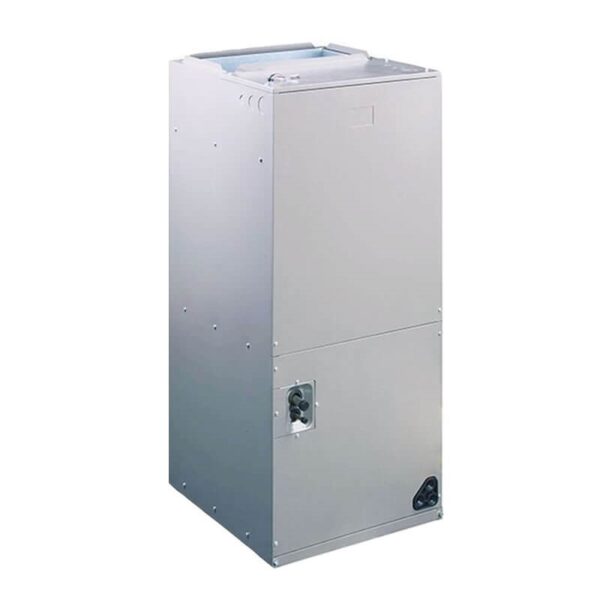

Air Handler Dimensions: H41 3/8" x W18 1/8" x D20 1/2"
Filter Size: 16" x 20" x 1"
Volts: 208/240
Phase: 1
Hertz: 60
EER: 12.0
HSPF: 8.2
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter
Condenser Specification Sheets
Air Handler Specification Sheets
Additional information
Indoor Unit Air Flow | Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge) |
---|---|
Brand | |
Energy Star Certified | No |
Model Number | M4HP4018C1000A, M4AH4P18B1A00AA |
Refrigerant | |
Cooling Efficiency | |
Subtitle | Electric Air Conditioning (AC) and Heating System (M4HP40 & M4AH4 Series) Made By Ingersoll Rand, Part of the Trane and American Standard Family |
Cooling Capacity |
